577Wh Energy Storage System Portable Outdoor CPET-MP 3.7V MPPT Tracking

Name: 577Wh Energy Storage System Portable Outdoor CPETMP 37V MPPT Tracking
Brand: CONSNANT
Price: 1 USD

China 577Wh Energy Storage System Portable Outdoor CPET-MP 3.7V MPPT Tracking wholesale

Brand Name : CONSNANT

Model Number : CPET-MP 2000W

Certification : CE,ISO9001/ISO14001

Place of Origin : Shenzhen,China

MOQ : 1 Unit

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 pieces per month

Delivery Time : 20 days after receiving 30% deposit

Packaging Details : Wooden case

Remained energy rate : Remained energy rated from 0% to 100%, the cycle ring changes with SOC.

Battery energy : 577Wh（155900mAh）

Battery type : Lithium ion battery

E1 Low Power : Low battery protection, stop discharging output, allow charging

E2 Over Temp : Battery over temperature protection, stop charging and discharging

Charge protection : Charging overcurrent protection

Contact Now

Portable Outdoor Emergency Power Supply

DC output

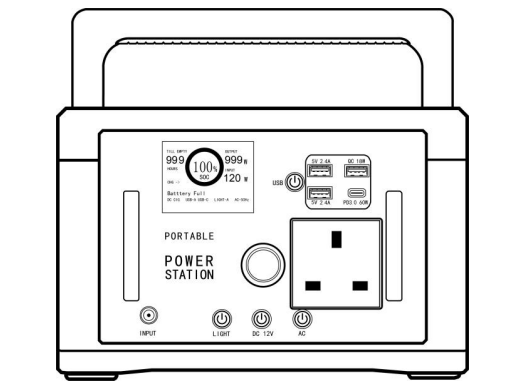

Long press the DC button for 1 second to turn on the DC output function. The blue backlight of the button lights up. The corresponding area of the display screen displays the "DC CIG" icon, indicating the output of cigarette lighter port. Long press for 1 second to turn off DC output function, and long press for 3 seconds to turn off all output functions.

Solar charging

Insert the output terminal of the solar energy into the input port of the device, and the display flashes "CHG - >" to indicate charging, while the input displays the charging power, indicating that the ring color block of the power is flashing. It is suitable for solar photovoltaic panels with output voltage in the range of 18V-25V, and supports 120W charging at most. MPPT maximum power tracking technology is adopted to charge the solar photovoltaic panels with maximum output capacity in case of power fluctuation. The output power of solar energy is greatly affected by light, and the fluctuation of output power is a normal phenomenon.

AC output

Press and hold the AC button for 1 second to turn on the AC output function. The blue backlight of the button lights up. The corresponding area of the display shows the "AC-50Hz/60Hz" icon, indicating the output of AC port. The maximum power output is 700W, stop output in 30s when the power exceeds 750W, stop output in 15s when the power exceeds 800W, stop output in 3S when the power exceeds 850W, report overload fault code, turn off the power, the fault disappears, and turn it on again for normal use. Long press for 1 second to turn off AC output function, and long press for 3 seconds to turn off all output functions.

Specifications

Rated power	200W
Rated capacity	2304wh
Standard capacity	3.7V720000mAh
Overload protection	2100±80W
AC output	110V/220V/240V±10%/50/HZ60HZ
Output wavie	Sine Wave
USB output	QC3.0/18W
Type-C output	PD60W
Cigarret lighter output	14V/8A
DC 5525 output	14V/8A
Wireless charging	/
Charging input Voltage	110V±10%/60HZ;220V±10%/50HZ
PV input	Support
Working temperature	-10-40℃
Weight(Net weight)	≈21kg
Weight(with accessories)	≈23kg
Dimension	400270270mm

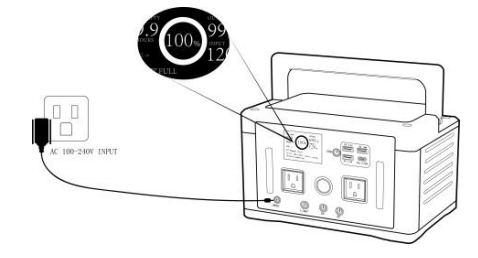

The product Cannot be charged

① Check whether the charger, power supply and mains plug are in good contact.

② Check whether the indicator light of the charger is on. If it is not on, the charger may be damaged.

Please contact the after-sales department for treatment.

③ Check whether the display is on. If it does not indicate the charging state, please contact the after-sales service department.

After-sales service

During the use of the product, the normal operation according to the user's manual can not

eliminate the fault. Please contact the dealer in time and give clear feedback to the after-sales

personnel: product model, purchase date, contact number and fault phenomenon.

① Product warranty period 1 year

The shelf life is calculated from the date of purchase by consumers. In order to determine the purchase date, consumers are requested to keep the purchase related bills and online purchase records.

② During the warranty period, the company shall undertake the obligation of free maintenance and parts replacement for defects caused by product process or materials and damage caused by non-human factors.

③ The following are not covered by the warranty.

• Dismantle and repair without permission of non-staff

• Product performance failure due to human factors

• Damage caused by natural disasters, lightning, accidents and other irresistible factors

• Appearance damage after use is not covered by warranty
